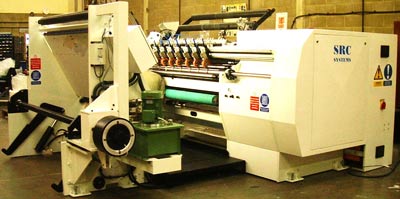

810 Duplex Center

Unwind diameter 1000mm to 1500mm, Roll weight up to 750Kg. Photo electric eye for edge/line control. Removes creases from film products. Tangential, Rotary shear, Razor & Crush Cut slitting. Touch screen with job data memory recall system

Specs

• 1600-2000 mm (63-76in), WEB width (min/max)
• 1000-1500mm (40-50in), Unwind/Master roll diameter
• 800 mm (32in), Max Rewind roll diameter
• 20mm (0.78in), Minimum Slit
• 500 MPM (1675 FPM), Max Speed

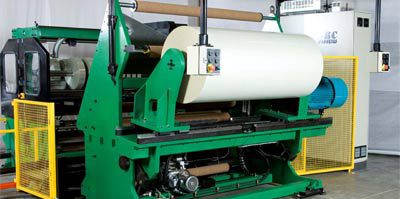

710 Duplex Center Surface

The 710 series is offered as a versatile Center surface Slitter/Rewinder system. The unit is offered with either cantilevered or lift out shaft system for the rewind end. With 800/1000mm max finished roll diameter, dependent upon shaft system chosen. Off load, push system to assist operators with line operations. Shaftless Unwind with load assist.

Specs

• 2000mm
• WEB width (min/max)
• 1000mm
• Unwind/Master roll diameter
• 1000mm lift out/800mm Cantilevered
• Max Rewind roll diameter
• 25mm
• Minimum Slit
• 500 MPM
• Max Speed

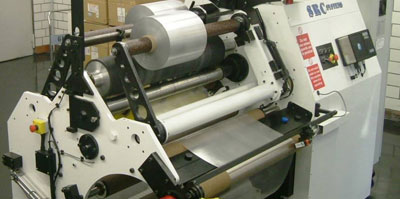

645 Duplex Center Surface

Developed to handle delicate products, a small footprint machine with an extremely short web path. Slitting station capable of rotary shear and razor slitting. Touch screen control with data Save / Recall system.

Specs

• 800 mm (32in), WEB width (min/max)
• 800 mm (32in), Unwind/Master roll diameter
• 600 mm (24in), Max Rewind roll diameter
• 15MM (0.59in), Minimum Slit
• 450 MPM (1500 FPM), Max Speed

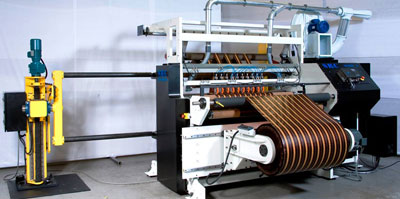

590 Duplex Center

A General purpose slitting & rewinding machine with lock bar & differential slip winding. Fully automatic loadcell tension control throughout. Rotary shear, razor & score slitting available. Edge line guiding.

Specs

• 1600-2000 mm (63-76in), WEB width (min/max)
• 1000-1500mm (40-50in), Unwind/Master roll diameter
• 800 mm (32in), Max Rewind roll diameter
• 20mm (0.78in), Minimum Slit
• 500 MPM (1675 FPM), Max Speed

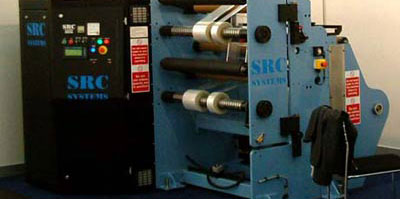

480 Duplex Center

Low cost single piece machine with a small footprint with easy installation. Designed to handle many products. Rotary shear and razor slitting.

Specs

• 800-1600mm (32-64in), WEB width (min/max)
• 800 mm (32in), Unwind/Master roll diameter
• 450 mm (17in), Max Rewind roll diameter
• 20mm (0.78in), Minimum Slit
• 300 MPM (1000 FPM), Max Speed

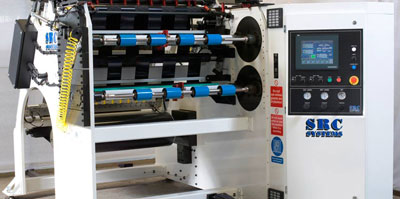

TTR Thermal Transfer Ribbon

The Thermal Transfer Ribbon (TTR) slitter is compact and easy to install. Fully automatic loadcell tension control throughout. Razor slitting in air or in groove. Full colour touch screen with 1000 job data memory recall system. Leader trailor splice table with automatic web feed. Dual oscillating trim winders.

Specs

• 1000mm (40in), WEB width (min/max)
• 600 mm (24in), Unwind/Master roll diameter
• 152mm (6.0in), Max Rewind roll diameter
• 12.5mm (0.50in), Minimum Slit
• 500 MPM (1675 FPM), Max Speed

Winding

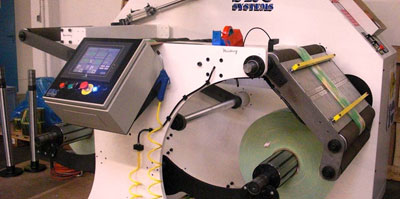

606 and 808 Doctor Winder

Fully reversible on the fly. Dancer arm tension control. 2 motor drive.Optional rotary shear, razor slitting station.

Specs

• 600/800mm (24-32in), WEB width (min/max)
• 600/800mm (24-32in), Unwind/Master roll diameter
• 600/800mm (24-32in), Max Rewind roll diameter
• NA, Minimum Slit
• 300 MPM (1000 FPM), Max Speed

Slitting

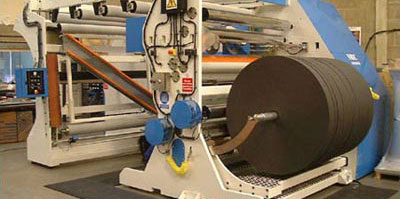

Foam Slitter

Roll diameter up to 2000mm. Dual pull rollers in 4 quadrant control.Machine speed 500mtrs/min. Ultrasonic tension and gap control. Colour touch screen or SCADA interface.

Specs

• 850–1450mm (34–57in), WEB width (min/max)
• 820–1420mm (33–56in), Print Width (min/max)
• 400–1100mm (16–43in), Repeat Range (min/max)
• AS REQUIRED, Number of Colors
• 350 MPM (1,175 FPM), Max Speed

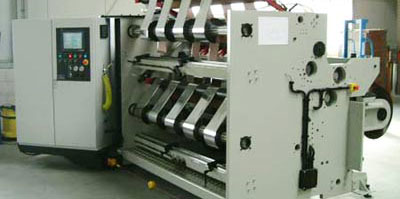

Hot Stamping Foil Slitter

Designed specifically for the thermal ribbon and hot stamping foil industry. Supplied as standard with constant gap rewinding (to produce soft rolls) as well as contact control. Interchangeable shafts enabling winding on cores down to a minimum of 25mm diameter with a maximum width of 1600mm. The two independently driven rewind mandrels enable 25mm core product to be wound on one mandrel and 76mm core product on the other. The two-rewind mandrels have independent diameter control enabling independent taper tension for each mandrel. Tension control is fully automatic actual tension via load cells mounted within the three tension zones on the machine unlike competitors who calculate tension. These tensions are displayed in real time as bar graphs during the full running cycle of the machine.

Specs

• 1000-1300mm (39-51in), WEB width (min/max)
• 35 mm, Minimum slit
• Duplex Center wind,
• Slit via Rotary Shear
• 450 MPM (1500 FPM), Max Speed
